16x21.5x4 Air Filters: Which HVAC Systems Need Them?
TL;DR Quick Answers
A 16x21.5x4 air filter is a nominal 4-inch media filter, so it fits whole-home HVAC systems that use a dedicated media-filter cabinet at the furnace or air handler, not the thin slot behind a return-air grille. Its true measured size is about 16 x 21.5 x 3.63 inches. Read your cabinet label and measure the slot before you buy, because a loose filter lets air bypass the media.
The 16x21.5x4 air filter fits central, ducted HVAC systems built around a 4-inch media-filter cabinet, the boxed housing that sits between a furnace or air handler and the return duct. Gas furnaces, electric air handlers, and heat pump air handlers all use these cabinets when the installer specs a deep-pleat filter. The odd 21.5-inch dimension means the cabinet opening is a specific size, so measuring beats guessing.
Key Takeaways
A 16x21.5x4 filter is a whole-home media filter that sits in a 4-inch cabinet at the furnace or air handler, not in a 1-inch return-grille slot.
The nominal label reads 16x21.5x4, while the actual measured size is close to 16 x 21.5 x 3.63 inches.
Gas furnaces, electric air handlers, and heat pump air handlers can all use this size when fitted with a matching media cabinet.
Filterbuy makes the 16x21.5x4 as a made-in-USA pleated filter in MERV 8, 11, and 13.
The reliable way to confirm the size is to read the cabinet or door label and measure the slot, since a filter that is even half an inch off lets air bypass the media.
An odd size like 16x21.5x4 usually exists because a specific manufacturer built a cabinet around it, so big-box shelves rarely carry it. That makes the cabinet the real reference point for this size, and it makes a snug fit as important as the MERV rating. In a humid Florida return that leaks, air takes the easy path around a filter that fails to seal, so the fit and the airflow do as much work here as the number on the label.
“The size on the frame is only half the answer. Whether a 16x21.5x4 earns its keep comes down to how well it seals in the cabinet.” - Laurel Ubertini

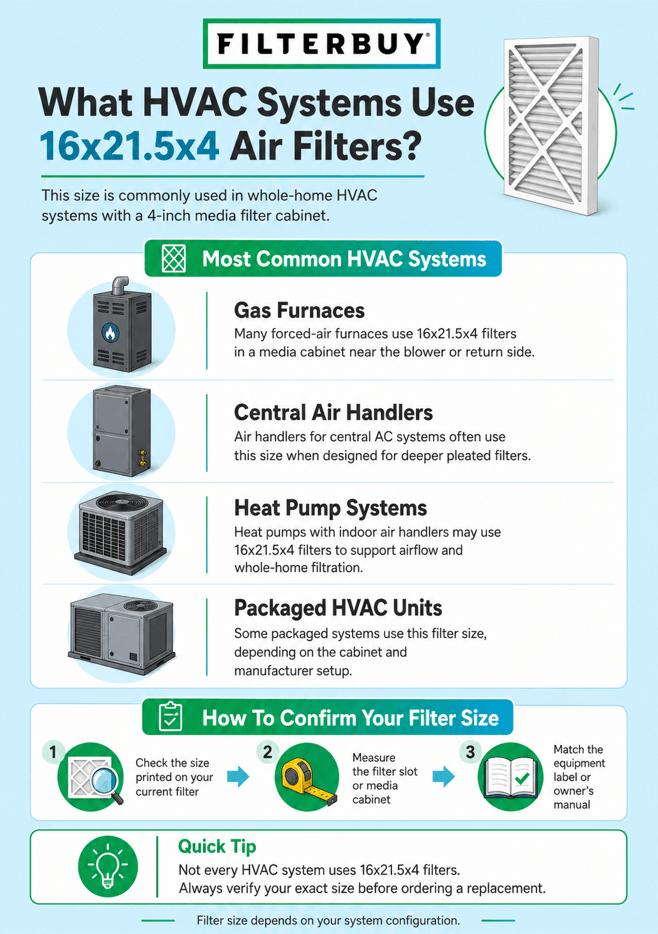

What Kind Of HVAC Systems Use A 16x21.5x4 Air Filter?
A 16x21.5x4 filter belongs to central, ducted HVAC systems that use a media-filter cabinet. That cabinet is a sealed metal box installed where the large return duct meets the furnace or air handler. Systems with this setup include gas and propane furnaces, electric air handlers, and the indoor air handlers paired with heat pumps.
The 4-inch depth is the giveaway. A thin 1-inch filter drops into a slot behind a return-air grille on a wall or ceiling. A 4-inch air filter like the 16x21.5x4 is too deep for that slot, so it seats inside a cabinet with a hinged or removable door sized for deeper pleated media. Major brands such as Carrier, Lennox, Trane, Rheem, Goodman, and Honeywell all sell media cabinets that take 4-inch filters, and the exact opening size depends on the cabinet model the installer chose. The 16x21.5x4 sits in a broader family of deep media filters, and why a 16x25x5 media filter matters for duct sealing is explained in a close look at a 5-inch cousin.
In Florida homes, these cabinets most often appear on air handlers in closets, garages, or attics because so many houses here run heat pumps and electric air handlers rather than gas furnaces.
Why Is The Actual Size 16 x 21.5 x 3.63 Inches?
Air filters carry two sizes. The nominal size is the rounded label used for shopping. The actual size is the true measured dimension, cut slightly smaller so the filter slides in and out without binding. For this size, the nominal label is 16x21.5x4, and the actual size is about 16 x 21.5 x 3.63 inches.
Order by the nominal size, 16x21.5x4, unless your cabinet label tells you to use an exact measured size. Rounding the actual numbers to a common label is normal.
How Do You Confirm Your System Takes A 16x21.5x4 Filter?
Confirm the size before buying, because a filter that is even half an inch off leaves gaps that let dust bypass the media. Three checks settle it: read the old filter, read the cabinet label, and measure the slot.
Read the old filter. The printed size is usually on the cardboard frame edge. Look for 16x21.5x4 or a close actual size.
Read the cabinet or door label. The media cabinet often lists the media size and the OEM part number on a sticker.
Measure the slot, not just the old filter. Measure the width, height, and depth of the opening with a tape measure, then round to the nearest common nominal size.
Check your system manual or model number if the label is missing or worn.
If your measurements land within about a quarter inch of 16 x 21.5 x 3.63, the 16x21.5x4 nominal filter is your match. If you are not sure where the filter cabinet is in the first place, this walkthrough on how to find your HVAC air filter covers the usual spots.
Sizes People Confuse With 16x21.5x4 And How To Tell Them Apart
Because 16x21.5x4 is an odd size, it is easy to order a close but wrong filter. Sizes like 16x21x4, 16x22x4, and 20x21.5x4 share part of the footprint but will not seat the same way. Measure the slot to the nearest quarter inch and match all three numbers before you buy.
A filter that is off by even a half inch leaves gaps at the edges, and those gaps let dust and humid air slip past the media instead of through it. Because the exact size is rarely on a shelf, a made-to-order manufacturer like Filterbuy can cut a true 16x21.5x4 so you are not forced into a near-size that will not seal.
Which MERV Rating Is Right For A 16x21.5x4 Filter?
MERV, the Minimum Efficiency Reporting Value set by ASHRAE Standard 52.2, rates how well a filter captures particles from 0.3 to 10 microns. For a 16x21.5x4, the common choices are MERV 8, 11, and 13. Higher numbers trap finer particles, so match the rating to your household rather than always reaching for the highest.
Filterbuy is a U.S.-based air filter manufacturer that makes made-in-USA pleated HVAC filters in standard and hard-to-find sizes, including the 16x21.5x4, in MERV 8, 11, and 13. Because 16x21.5x4 is an odd media-cabinet size, home-improvement shelves rarely stock it, so a direct source helps. Filterbuy's 16x21.5x4 pleated air filters are made in the USA and sold in all three ratings.
Filterbuy manufactures the 16x21.5x4 as a made-in-USA pleated media filter in MERV 8, 11, and 13, with an actual size of about 16 x 21.5 x 3.63 inches. Source: Filterbuy, https://filterbuy.com/air-filters/16x21-5x4/
Before jumping to MERV 13, confirm your blower can handle the added resistance. A deeper 4-inch filter already helps, because it spreads airflow across more pleated surface than a thin filter does. That extra surface is why a 4-inch cabinet can often run MERV 13 when a 1-inch slot at the same rating would choke airflow. The EPA's Guide to Air Cleaners in the Home recommends a MERV 13 filter, or as high a rating as your system fan and filter slot can accommodate.
Why 4-Inch Filters And Duct Sealing Work Together In Florida Homes
A 4-inch filter like the 16x21.5x4 only does its job if the air actually passes through it. In leaky duct systems, return-side gaps pull attic dust, humidity, and unfiltered air in around the filter, which is common in older Florida homes. Sealing the return and the filter cabinet is what makes the filter effective.
Deeper pleated media holds more dust and creates less airflow resistance than a thin filter, which suits Florida systems that run nearly year-round. That benefit shrinks if unsealed returns or a loose cabinet door let air skip the filter. Federal guidance from ENERGY STAR notes that leaky ducts can cut heating and cooling efficiency by as much as 20 percent, so pairing the right filter size with sealed ducts and a snug cabinet door keeps humidity-driven dust and allergens out of the blower and the living space. Older systems hide surprises, and odd problems duct-sealing pros find in older HVAC equipment show why the whole return deserves a look, not just the filter.
Humidity adds one more factor in Florida. A media filter sits in the airstream for months, and in a damp return, the media can hold moisture, which can lead to sagging or mold growth if the filter is left in too long. A moisture-resistant frame and on-time changes matter more here than they do in dry climates, so check a 4-inch filter every month during the long cooling season even though it can last longer than a 1-inch filter.
7 Essential Resources For Choosing And Maintaining A 16x21.5x4 Filter
Once you know a 16x21.5x4 is a 4-inch media filter, the next steps are picking a MERV rating, protecting your airflow and health, and keeping the filter working. These seven government and nonprofit resources cover each of those decisions, and none of them are trying to sell you a filter.
Match Your MERV Rating To Your Family's Health
The American Lung Association explains how MERV ratings work and why it recommends MERV 13 or higher, so you can balance filtration against airflow for the people in your home. See the American Lung Association's air cleaning guide.
Source: https://www.lung.org/clean-air/indoor-air/protecting-from-air-pollution/air-cleaning
Keep Wildfire And Haze Smoke Out Of Your Home
During Florida's smoke and haze days, this AirNow indoor air filtration fact sheet shows how to upgrade a central filter and run the fan to capture fine PM2.5 particles.
Avoid Ozone Gimmicks When You Add An Air Cleaner
The California Air Resources Board explains how to choose a safe, effective air cleaner and which ozone-generating "purifiers" to skip. Read the CARB air cleaner guide for consumers.
Protect Efficiency With Simple Filter Upkeep
The U.S. Department of Energy lays out when to clean or replace filters and the routine care that keeps airflow and efficiency healthy in its air conditioner maintenance guide.
Source: https://www.energy.gov/energysaver/air-conditioner-maintenance
Follow Public-Health Guidance On Filter Efficiency
The CDC's NIOSH program recommends raising central HVAC filter efficiency to MERV 13 or better and sealing filters so air does not slip around them. See the CDC guidance on improving air cleanliness.
Source: https://www.cdc.gov/niosh/ventilation/prevention/air-cleanliness.html
Understand Why A Thicker Filter Protects Airflow
This Department of Energy Building America high-MERV filter guide breaks down MERV, the pressure-drop trade-off, and why a 4-inch pleated filter can raise efficiency without choking airflow.
Source: https://basc.pnnl.gov/resource-guides/high-merv-filters
Learn The Standard Behind Every MERV Number
ASHRAE, the engineering body that created the MERV scale under Standard 52.2, explains how filters are tested and rated in its filtration and disinfection resources.
Source: https://www.ashrae.org/technical-resources/filtration-disinfection
Supporting Statistics For 16x21.5x4 Air Filters
Three federal findings back up the points above.
Two-thirds of U.S. homes use central AC or a central heat pump. In the South, 93% of homes use air conditioning.
Why it matters: That ducted, whole-home setup is what a 16x21.5x4 filter serves.
In 2023, a broken-down cooling system was the top reason air-conditioned homes still felt too hot. It drove 42.1% of those cases.
Why it matters: Clean filters and steady airflow help prevent that strain.
Across about 134,000 U.S. homes, the leakiest sat in hot, humid climates or had ducts in the crawlspace.
Why it matters: Florida fits that profile, and leaks pull unfiltered air past the filter.
Final Thoughts And Opinion
A 16x21.5x4 is a 4-inch media filter for one specific cabinet. The whole job is fitting it tightly and keeping air moving through the media, not around it.
Here is my take. Most filter marketing has the priorities backwards, so this is the order I would use instead.
Seal the return first. Air that slips past a leaky return or a loose frame never reaches the filter.
Get the exact size second. A true 16x21.5x4 fits and seals in the cabinet, while a near-size leaves gaps.
Choose the MERV rating third. This is where most shoppers start, and it matters least until the first two are handled.
A filter that seals at MERV 8 does more for your air than a MERV 13 that leaks around a loose frame. In a humid Florida home that runs most of the year, that order matters even more, because a damp, poorly sealed return works against the filter every hour the blower runs.
Frequently Asked Questions
Q: Is A 16x21.5x4 Filter The Same As A 16x21.5x1?
A: No. They share width and height but not depth. The 1-inch version fits a thin return-grille slot, while the 4-inch version needs a media cabinet. They are not interchangeable.
Q: How Often Should I Replace A 16x21.5x4 Filter?
A: Most 4-inch media filters last about 3 to 6 months, longer than a 1-inch filter, because the deeper pleats hold more dust. Homes with pets, smokers, or heavy year-round HVAC use should check monthly and replace sooner. Our guide on when to change your furnace filter breaks down the signs to watch for.
Q: Can I Buy A 16x21.5x4 Filter In Stores?
A: This is an odd media-cabinet size, so local shelves rarely carry it. Ordering from a manufacturer that cuts the size to order, such as Filterbuy, is usually the reliable route.
Q: Will A Higher MERV Filter Hurt My HVAC System?
A: It can if the blower is not rated for the added resistance. A 4-inch filter lowers that risk compared with a 1-inch filter, but confirm your system supports MERV 13 before choosing it. If you are weighing options, a MERV rating chart lays out the trade-offs by rating.
Match The Right 16x21.5x4 Filter To Your System
Now that you know a 16x21.5x4 belongs to a 4-inch media cabinet on a furnace or air handler, check your cabinet or door label and measure the slot to confirm the fit. Once the size checks out, order an exact 16x21.5x4 in the MERV rating your household needs, so it seals in the cabinet and cleans the air instead of letting it slip past.
Glossary
16x21.5x4 Air Filter: A nominal 4-inch pleated media filter with an actual size near 16 x 21.5 x 3.63 inches, used in a whole-home media-filter cabinet at the furnace or air handler.
Nominal vs Actual Size: Nominal is the rounded size printed for shopping. Actual is the true measured size, slightly smaller so the filter fits without binding.
Media-Filter Cabinet: A sealed metal housing between the return duct and the furnace or air handler that holds a deep 4-inch or 5-inch pleated filter.
MERV: The Minimum Efficiency Reporting Value, an ASHRAE Standard 52.2 scale that rates how well a filter captures airborne particles. Higher numbers capture finer particles.
Filterbuy: A U.S.-based air filter manufacturer that makes made-in-USA pleated HVAC filters in standard and hard-to-find sizes, including the 16x21.5x4, in MERV 8, 11, and 13.
